Technical Specifications
General

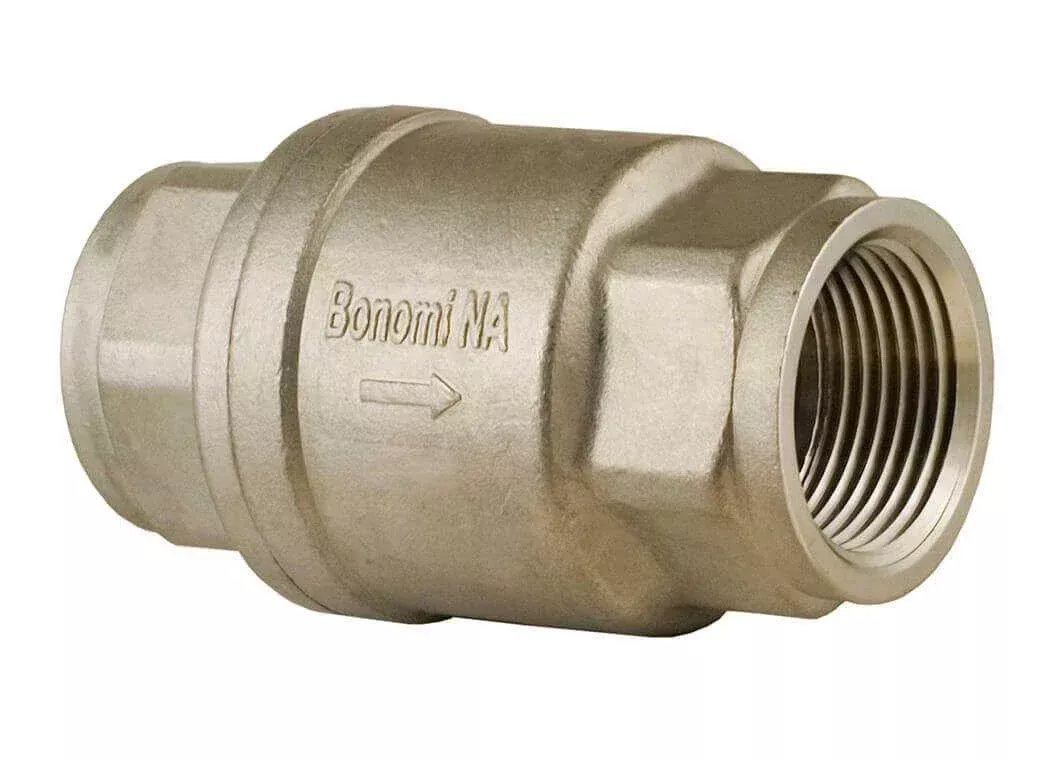

| Item | Check Valve |
|---|---|
| Type | In-Line Silent Check Valve |
| Size | 1″ |
| Brand | Bonomi Valves |
| Manufacturer Part | S800-1 |
Materials & Construction
| Body Material | Stainless Steel (CF8M) |
|---|---|
| Spring Material | Stainless Steel (316 SS) |
| Disc & Guide | Stainless Steel (CF8M) |
| Seat and Gasket | PTFE |
| End Cap Material | Stainless Steel (CF8M) |
Performance
| Max. Pressure | 800 WOG-125 WSP |
|---|---|
| Cracking Pressure | 1/2 psi |
| Temperature Range | 10F to 450F |
Connections
| Connection Type | Threaded (FNPT x FNPT) |
|---|
