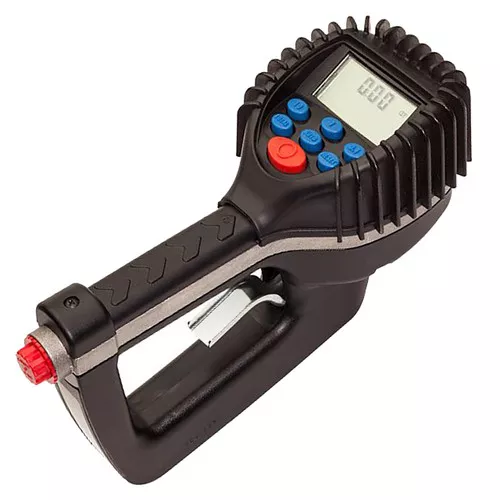

Badger Meter Oval Gear Electronic Standard Preset Meter, 1/2 in. Female NPT
Badger Meter’s automotive oval gear in-line mechanical flow meters use oval gear technology to accurately measure fluid with electronic field serviceable/replaceable registers. The transmitter style register provides a reliable interface to many inventory management systems. These meters are designed for brake fluid, wiper fluid and antifreeze applications. The Electronic Preset meter is designed specifically to meter and dispense bulk fluids for servicing automobiles, trucks, buses, construction equipment, and similar applications. The meter is designed to dispense motor oils (SAE 5 to 50), gear oils (SAE 80 to 240), automatic transmission fluid, antifreeze (ethylene glycol) solution, and hydraulic fluid.
The EPM-2 STD has a superior rugged, shock-resistant design for demanding environments. The meter is programmed to dispense in quarts. A batch size can be programmed in a matter of seconds. A 5-digit liquid crystal display, accurate to the second decimal point, shows the exact amount of fluid dispensed. The meter uses four replaceable AA batteries and is calibrated at the factory. The meter can also be recalibrated easily in the field for a fluid of different viscosity.
