Technical Specifications
General

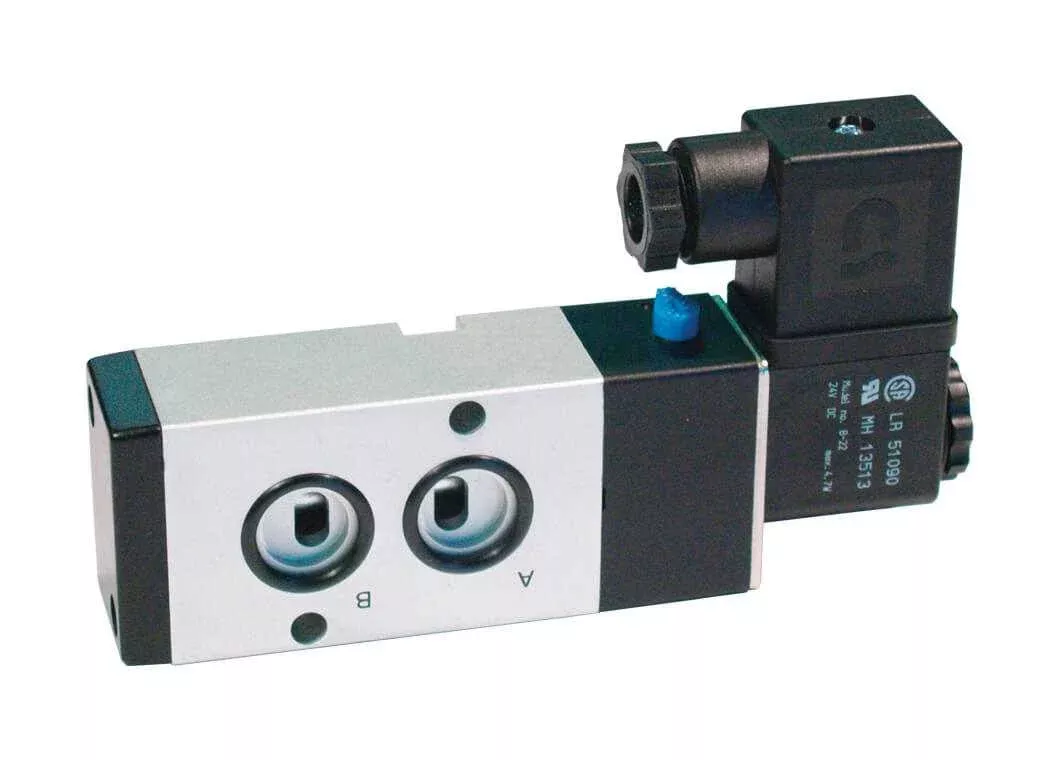

| Item | Solenoid Valve |
|---|---|
| Cv | 1.68 |
| Voltages | 110 VAC, 24 VDC, 12 VDC, 220 VAC, OR 24 VAC |
| Duty Cycle | 100% Continuous |
| Consumed Power | 2.5 Watts |
| Mount | NAMUR |
| Brand | Bonomi Valves |
| Manufacturer Part | BNM-NMR1-4-DIN |
Performance
| Nema Rating | Nema 4, 4x |
|---|---|
| Pressure Range | 20-120 psig |
| Temperature Range | 35F to 130F (Normal) 0F to 130F (with Dry Media) |
Connections
| Porting | 4-Way |
|---|---|
| Elec. Connection | DIN |
