Technical Specifications
General

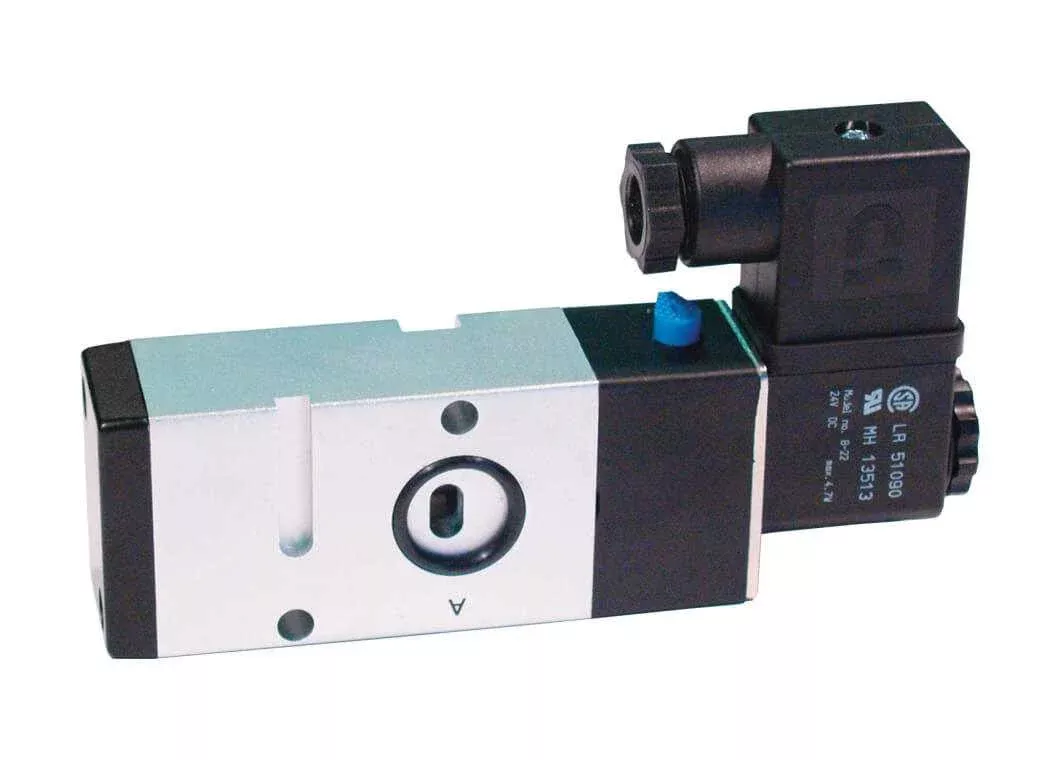

| Item | Solenoid Valve |
|---|---|
| Voltage | Various Available |
| CV | 1.68 |
| Duty Cycle | 100% Continuous |
| Power Consump. | 2.5 Watts |
| Brand | Bonomi Valves |
| Manufacturer Part | NMR3-D2 |
| Size | 1/4″ |
Performance
| Pressure Range | 20-120 PSIG |
|---|---|
| Temperature Range | 35F – 130F (normal), 0F – 130F (with dry media) |
| NEMA Rating | NEMA 4/4X |
Connections
| Porting | 3-Way |
|---|---|
| End Connection | DIN Connector |
| Ports | 1/4″ NPT |
Download Specification Sheet (PDF)
