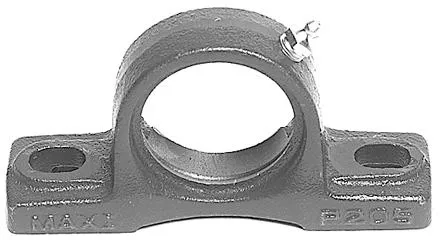

When a bearing housing cracks or wears out on your equipment, you need a replacement that’ll handle the loads without breaking the bank. This cast iron pillow block housing is built to support rotating shafts on everything from conveyors to PTO drives, giving you the solid foundation your bearings need to do their job.
What You’re Getting
- Heavy-duty cast iron construction that won’t crack under field loads
- 100mm flange with 5/8 inch bolt holes on 7.13 inch spacing for secure mounting
- Accepts both wide and narrow series 211 insert bearings for flexibility
- Greasable design keeps your bearings properly lubricated
- Two-hole mounting pattern fits standard pillow block setups
Built for Real Farm Work
This housing is designed for the demanding conditions you’ll find on agricultural and industrial equipment. Whether it’s supporting a conveyor shaft on your grain handling system, holding up a PTO drive, or keeping machinery running smooth on processing equipment, this pillow block provides the stable platform your bearings need to handle continuous operation and heavy loads.
Made to Last
Cast iron might seem old-fashioned, but it’s the right choice for bearing housings because it dampens vibration and distributes loads evenly. The 100mm flange gives you plenty of mounting surface, and the material won’t flex under load like some lighter alternatives might.
Good to Know
This housing works with 211 series bearings like the 21132 and 21135, which are common sizes for medium-duty applications. Make sure your mounting bolt pattern matches the 7.13 inch spacing before ordering. When installing, use a thread locker on the mounting bolts and don’t forget to grease the bearing through the fitting.
