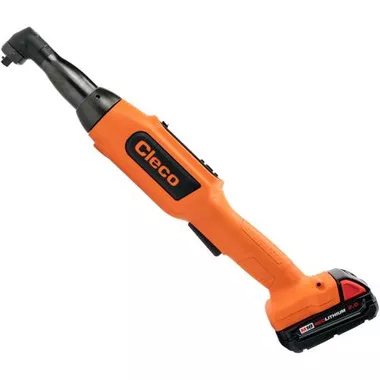

Cleco CCBAW153B CellCore Cordless Electric Nutrunner | 570 RPM | 3.3 – 11 (ft-lbs) Torque Range | 3/8″ Square Drive

Built for controlled fastening in production assembly cells, the Cleco CCBAW153B CellCore Cordless Electric Nutrunner combines a 3.3 – 11.0 ft-lbs torque range with a 570 RPM free speed for quick, repeatable rundowns on lighter 3/8″ drive fastening work. The right-angle configuration helps operators reach side-mounted and recessed fasteners where a pistol tool or inline spindle may be difficult to position. Its 3/8″ square drive with ball retainer accepts compatible sockets while helping keep the socket seated during repetitive fastening.

Part of the Cleco CellCore cordless assembly platform, the CCBAW153B supports programmable torque control without tying the operator to an air hose. CellCore tools are built for assembly-line use where repeatability, fastening feedback, and mobility all matter. With on-tool programming, controller connectivity options, and a compact 3.75 lb weight without battery, this nutrunner is well suited for quality-focused manufacturing environments that need controlled torque in a cordless right-angle format.

Please note that this listing is for the tool only; the Cordless Battery and Charger are not included and must be purchased separately.

Type: Cordless Electric Right Angle Nutrunner | Series: CellCore | Model: CCBAW153B | Drive Size: 3/8″ Square Drive | Drive Type: Ball Retainer | Torque Range: 4.5 – 15 Nm / 3.3 – 11.0 ft-lbs | Free Speed: 570 RPM | Weight Without Battery: 1.70 kg / 3.75 lb | Length: 456 mm / 17.95″ | Side to Center: 31.8 mm / 1.25″ | Height: 88 mm / 3.46″

Features:

• CellCore cordless electric platform gives assembly teams programmable torque control without the restrictions of pneumatic hose routing.
• Right-angle head improves access to fasteners positioned near fixtures, panels, brackets, and other obstructions.
• 3/8″ square drive with ball retainer supports compatible sockets while helping retain the socket during repeated production use.
• Large user interface allows on-the-tool programming without requiring a controller for basic setup.
• Ability to program up to 10 applications directly on the tool or connect to a controller for maximum functionality with FastApps.
• Assembly-line tough construction is drop tested up to 5 feet for use in active production environments.
• CellCore design reduces operator fatigue while delivering cordless power and fastening intelligence for controlled assembly work.
• Compatible with the Milwaukee M18 Red Lithium battery platform across the Cleco cordless range, helping reduce battery complexity in the plant.

Made in USA:

Note: Cordless Battery and Charger Sold Separately. Batteries and Chargers can be purchased from the following links:

Batteries:

• Cleco T50-1000497 Smart Lithium-Ion Battery
• Cleco T50-1000498 Smart Lithium-Ion Battery

Chargers:

• Cleco T50-1000499 Rapid Charger
• Cleco T50-1000500 6-Bay Sequential Charger

Applications:

• Automotive and vehicle assembly — fastening brackets, covers, clips, and lighter bolted joints where controlled torque helps reduce rework.
• Appliance and equipment manufacturing — repetitive assembly of housings, frames, panels, and subassemblies with 3/8″ drive sockets.
• Aerospace and precision production cells — cordless right-angle fastening around fixtures, stands, and restricted-access work areas.
• Electronics and light industrial assembly — tightening low-to-mid torque fasteners where repeatability and operator feedback are important.
• Maintenance and rework stations — controlled disassembly and reassembly of components where an impact wrench would be too aggressive.

FAQs:

• Q: What is the CCBAW153B used for?A: The CCBAW153B is used for controlled assembly fastening in the 4.5 – 15 Nm range. It is a cordless electric nutrunner for repeatable tightening, not an impact wrench for loosening seized fasteners.
• Q: What does the ball retainer drive mean?A: A ball retainer uses a spring-loaded ball to help hold the socket on the square drive. It is convenient when operators need to change sockets more easily than with a pin detent style.
• Q: Can this tool be programmed without a controller?A: Yes. The CellCore platform includes a large user interface for on-tool programming. It can also connect to a controller when the application requires maximum functionality with FastApps.
• Q: Does this tool include a battery and charger?A: The catalog lists weight values without the battery and references Milwaukee M18 Red Lithium batteries, but it does not confirm kit contents for this SKU. Please verify battery and charger inclusion before publishing or ordering.
• Q: How is this different from a standard cordless ratchet or impact wrench?A: A cordless ratchet or impact wrench is usually chosen for general fastening speed or fastener removal. The CCBAW153B is built for controlled torque assembly, where repeatability, fastening strategy, and quality feedback are more important than breakaway power.
