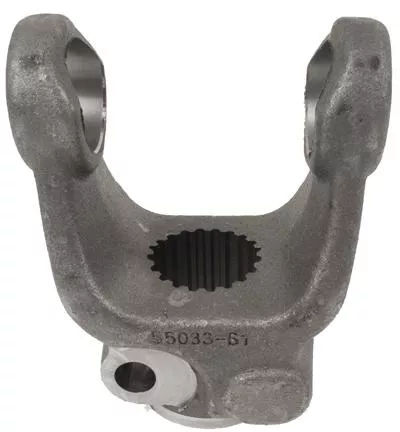

When you need a solid connection between your PTO driveline and an implement that takes 1-3/4 inch 20-spline power, this clamp-style yoke gets the job done right. Unlike standard bolt-on yokes, the clamp design grips tight around the implement shaft, making installation and removal quick when you’re switching between different pieces of equipment throughout the day.
What You’re Getting
- Clamp-type mounting that adjusts to shaft variations and holds securely
- 55 series heavy-duty construction handles higher horsepower applications
- 1-3/4 inch 20-spline bore matches standard implement input shafts
- 5-1/4 inch center-to-end dimension fits proper driveline geometry
- Precision-machined bearing surfaces keep U-joints running smooth
Built for Real Farm Work
This 55 series yoke is designed for implements that need serious power – think larger rotary cutters, heavy-duty tillers, manure spreaders, and other equipment that demands more than a lighter-duty connection can handle. The 1-3/4 inch 20-spline configuration is common on mid to large-size implements where you need positive drive without slippage under load.
Made to Last
Weasler builds these yokes to handle the constant stress of changing angles, shock loads, and the vibration that comes with real field work. The clamp design distributes stress evenly around the shaft, reducing wear compared to keyway connections that concentrate forces in one spot. The bearing caps are machined to tight tolerances so your U-joints stay aligned and balanced.
Good to Know
The clamp design makes this yoke especially handy when you’re dealing with slightly worn implement shafts or need to accommodate minor size variations. Just make sure your implement shaft is clean and free of burrs before clamping – any rough spots will cause premature wear. Tighten the clamp bolts evenly and check them after the first few hours of operation.
