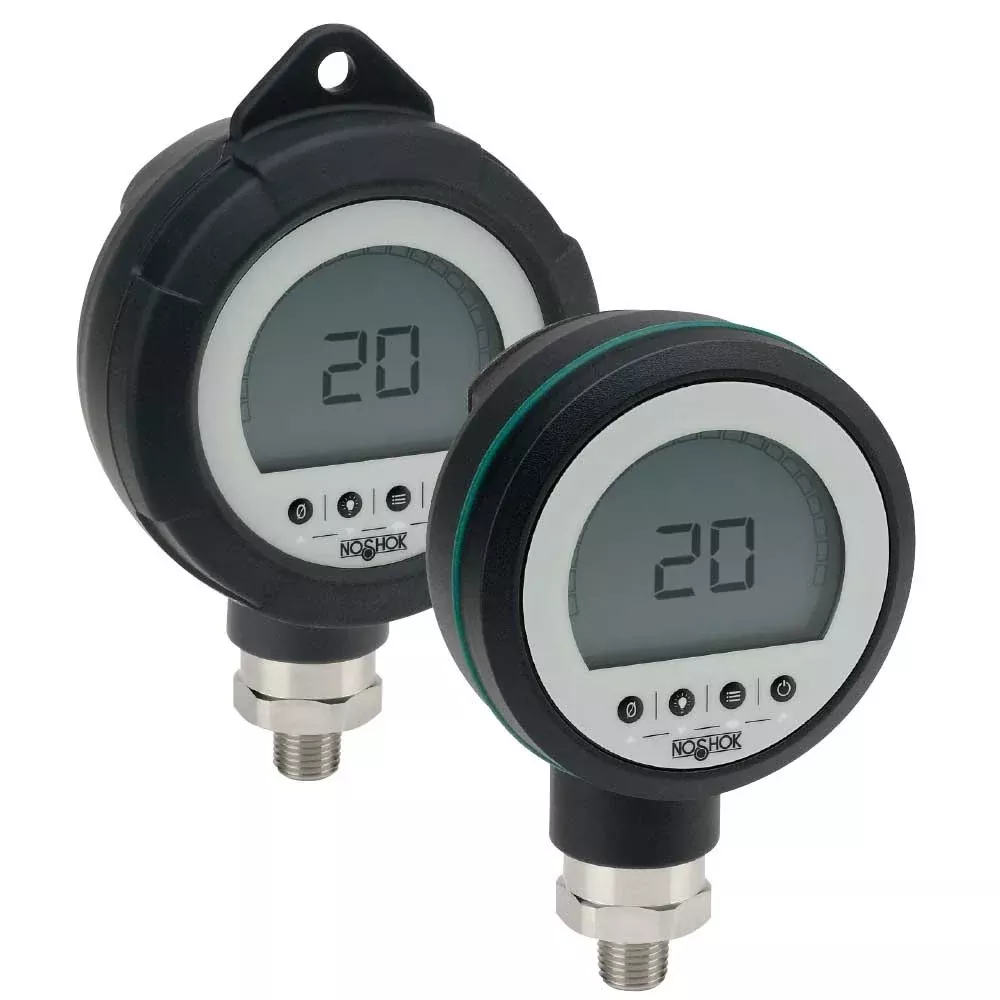

NOSHOK PGE20 Series – General Purpose Digital Gauge, PGE20-2000psig-1-2, 0 to 2000 psi, Â±0.50% Full Scale, Including Non-Linearity, Hysteresis, Zero Offset, End Point Deviationper IEC 61298-2 at Reference Conditions, 1/4 NPT Male

Name: NOSHOK PGE20 Series - General Purpose Digital Gauge, PGE20-2000psig-1-2, 0 to 2000 psi, Â±0.50% Full Scale, Including Non-Linearity, Hysteresis, Zero Offset, End Point Deviationper IEC 61298-2 at Reference Conditions, 1/4 NPT Male
Brand: goodprecisionfittings.com
SKU: PGE20-2000psig-1-2
Price: 140.78 USD
Availability: InStock

Original price was: $238.39.Current price is: $140.78.

Sale!

SKU: PGE20-2000psig-1-2 Category: hot sale

Description

Technical Specifications

General

Accuracy	±0.5% Full Scale
Measuring Element	316L Stainless Steel
Case	PBT with 30% glass fiber
Display	Back-lighting: activated via button
Power requirement	3 x 1.5 V AA Alkaline batteries
Response time	200 ms
Programmable functions, Measuring units	Adjustable through front key pad
Accessories / Uninstalled Options	PGE20-GC1 – Guage Carrying Case (1 gauge)
Brand	NOSHOK
Manufacturer Part	PGE20-2000psig-1-2
Size	1/4″
Country of Origin	Made in the United States

Performance

Pressure Range	0 psig to 2,000 psig
Operating Temperature [Min]	-10 ºC; 14 ºF
Operating Temperature [Max]	50 ºC; 122 ºF
Media Temperature [Min]	-20 ºC; -4 ºF
Media Temperature [Max]	50 ºC; 122 ºF
Storage Temperature [Min]	-18 ºC; 0 ºF
Storage Temperature [Max]	55 ºC; 130 ºF
Proof Pressure	> 7.500 psi: 1.43 times full scale
Burst pressure	>7.500 psi: 2 times full scale
Environmental rating	IP65
