Technical Specifications
General
| Item |

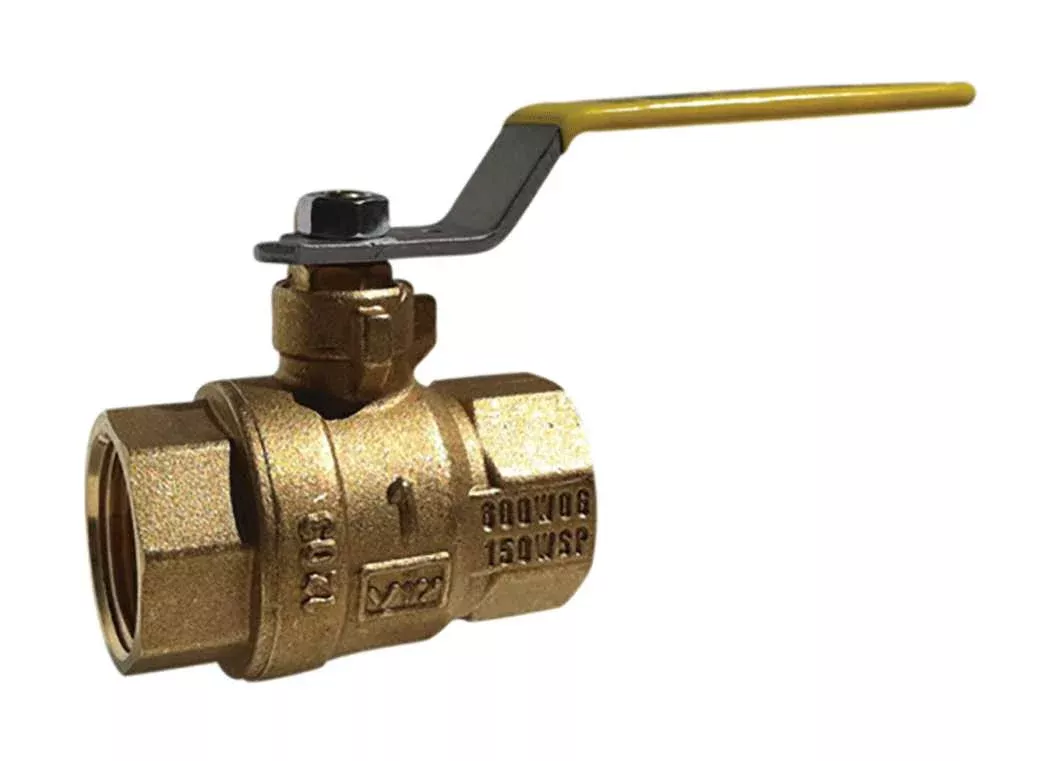

Ball Valve |
| Size |
1/4″ – 4″ |
| Brand |
Red-White Valve |
| Manufacturer Part |
RWV-5544AB |
| Country of Origin |
Made in Italy |
Materials & Construction
| Body Material |
Brass |
| Packing Material |
PTEFE (Adjustable) |
| Handle Type |
Lever |
| Seat Material |
RPTFE |
| Stem |
Blow-Out Proof |
Performance
| Pressure Class |
150 WSP / 600 WOG |
| Max. Pressure |
1/4″ to 1″ 2000 psig WOG, 1-1/4″� to 2″ 1500 psig WOG, 2-1/2″ to 3″ 1000 psig WOG |
| Max. Temperature |
600PSI from 15F-160F / 150PSI MAX at 366°F |
Connections
Standards & Certifications
MSS-SP-110CSA 1/2 &5 PSIUL (1/2″-2″)FM (1/2″-2″)NSF-61-G &NSF-372Download Specification Sheet (PDF)
