Technical Specifications
General
| Orifice | 2.5mm |
|---|---|
| Cv | 0.23 |
| Valve Type | 2-Way, 2-Position, Body Ported, Spring Return |
| Action | Direct Acting (Poppet) / Fast Response Time: <20msec / 22 SCFM at 100 PSI |
| De Energized State | Normally Closed (NC) |
| Op. Temp | 14°F to 122°F (-10°C to 50°C) |
| Coil Power | 3W to 8W / (Pressure Dependent) |
| Voltage Options | 12 VDC / 24 VDC / 24 VAC (50/60Hz) / 110/120 VAC (50/60Hz) / 220/240 VAC (50/60Hz) |
| Voltage Tolerance | ±10% of Specified Voltage |
| Ingress Protection | IP65 |
| Insulation Class | H Class |
| Coil Duty | 100% ED, Continuous Duty |
| Installation | No Orientation Requirement / Optimum Position: Flow Horizontal and Solenoid Vertical |
| Service | Air |
| Brand | STC Valve |

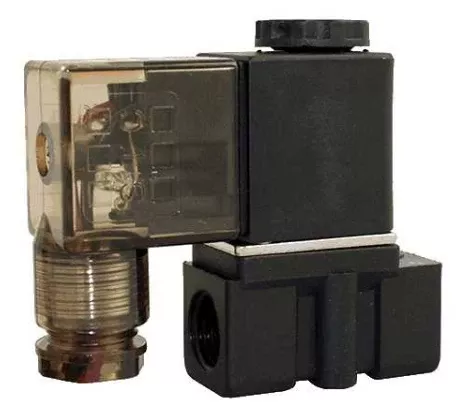

| Manufacturer Part | STC-2P025 |
Materials & Construction
| Body Material | Valve Body: Engineered Nylon Plastic (PA66) / Armature Assembly: Brass / Upgrade Options: Viton (FKM) or PTFE (Teflon) |
|---|
Performance
| Op. Pressure | Vacuum to 115 PSI |
|---|
Connections
| Elec. Connection | D: DIN 43650A / G: Grommet |
|---|
