Technical Specifications
General
| Orifice | 2.5mm to 5mm |
|---|---|
| CV | 0.23 to 1 |
| Valve Type | 2 Way |
| Action | Direct Acting (Poppet) / Fast Response Time: <20msec |
| De Energized State | Normally Closed (NC) |
| Op Temp | Media with NBR Seal: 14°F to 176°F (-10°C to 80°C) / Media with Viton Seal: 5°F to 248°F (-15°C to 120°C) |
| Coil Power | 13-20W |
| Voltage Options | 12 VDC / 24 VDC / 24 VAC / 110/120 VAC (50/60Hz) / 220/240 VAC (50/60Hz |
| Voltage Tolerance | ±10% of Specified Voltage |
| Ingress Protection | IP65 |
| Insulation Class | H Class |
| Coil Duty | 100% ED (Continuous Duty) |
| Installation | No Orientation Requirement / Optimum Position: Flow Horizontal and Solenoid Vertical |
| Service | Liquid, Water, Oil, Air, Steam (with Viton) |
| Brand | STC Valve |

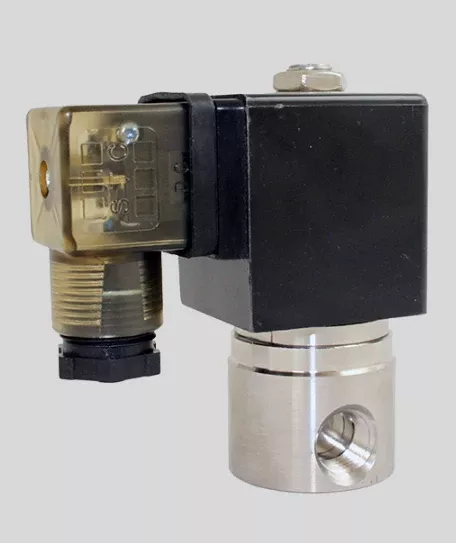

| Manufacturer Part | STC-2S025-050 |
Materials & Construction
| Body Material | Valve Body: Stainless Steel / Seal: NBR (Buna N), or Viton (FKM) / Armature Assembly: Stainless Steel |
|---|
Performance
| Op Pressure | 0 PSI to 80 PSI / 0 PSI to 150 PSI / 0 PSI to 170 PSI / 0 PSI to 200 PSI |
|---|
Connections
| Elec. Connection | D: DIN 43650, Form A / ATEX: Explosion Proof Coil (2W200C-ATEX) |
|---|
