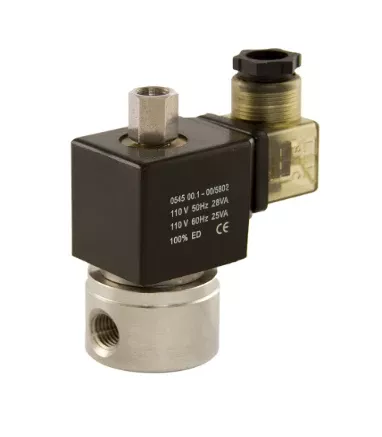

Technical Specifications
General
| Orifice | 2.0mm to 3.5mm |
|---|---|
| CV | 0.23 to 0.5 |
| Valve Type | 3 Way Universal |
| Action | Direct Acting / Fast Response Time: <20msec |
| De Energized State | Normally Closed (NC) or Normally Open (NO) |
| Op Temp | Media with NBR Seal: 14°F to 176°F (-10°C to 80°C) / Media with Viton Seal: 5°F to 248°F (-15°C to 120°C) |
| Coil Power | 13-20W |
| Voltage Options | 12 VDC / 24 VDC / 24 VAC / 110/120 VAC (50/60Hz) / 220/240 VAC (50/60Hz |
| Voltage Tolerance | ±10% of Specified Voltage |
| Ingress Protection | IP65 |
| Insulation Class | H Class |
| Coil Duty | 100% ED ( Continuous Duty) |
| Installation | No Orientation Requirement / Optimum Position: Flow Horizontal and Solenoid Vertical |
| Service | Liquid, Water, Oil, Air, Inert Gas |
| Brand | STC Valve |
| Manufacturer Part | STC-3S020-035 |
Materials & Construction
| Body Material | Valve Body: 316 Stainless Steel / Seal: NBR (Buna N), PTFE (Teflon), Viton (FKM), EPDM / Armature Assembly: Stainless Steel / Upgrade Options: PTFE (Teflon), Viton (FKM), EPDM |
|---|
Performance
| Op Pressure | 0 PSI to 50 PSI / 0 PSI to 100 PSI |
|---|
Connections
| Elec. Connection | D: DIN / G: Grommet / ATEX: Explosion Proof Coil (2W200C-ATEX) |
|---|
