Technical Specifications
General
| Output Ranges |
7 – 125 PSI |
| Max Supply |
150 PSI (9.9 kgf/cm^2) |
| Filter |
25 Micron Standard Sintered Brass Filter |
| Seals |
NBR |
| Brand |
STC Valve |
| Manufacturer Part |

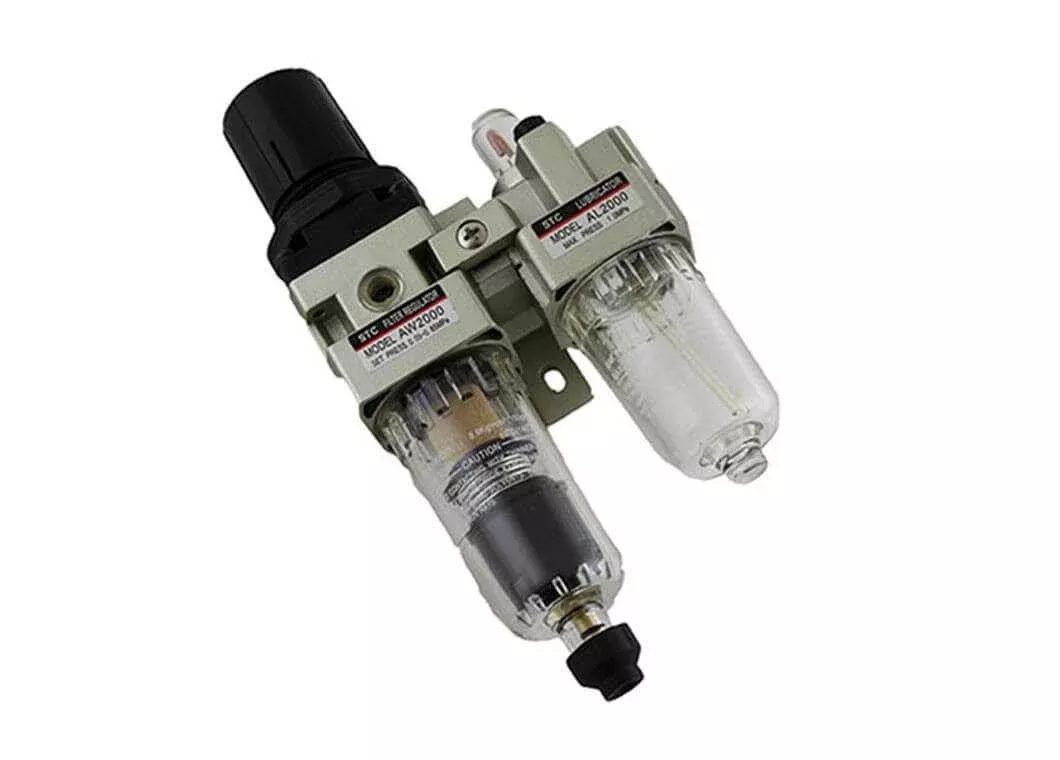

STC-AC1010-2010 |
Materials & Construction
| Body Material |
Aluminum |
| Bowl Material |
Aluminum / Polycarbonate |
Performance
| Flow Capacity |
3 to 18 SCFM (90 to 500 LPM) |
| Temperature Limits |
40 – 140°F |
Connections
| Port Size |
M5/10-32 to 1/4″ NPT |
| Gauge Port Size |
1/16 Rc (PT) / 1/8″ NPT |
Dimensions & Weight
Standards & Certifications
See Specification SheetDownload Specification Sheet (PDF)
