Technical Specifications
General

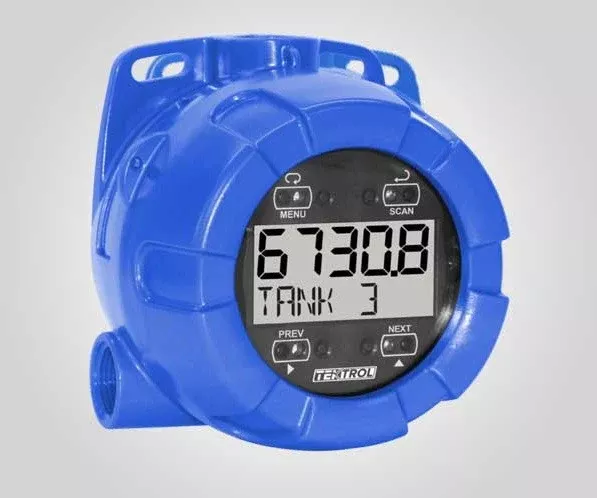

| Item | Modbus Scanner |
|---|---|
| Display Rate | Top Display: Five Digits (0 to 99999), 0.7″ (0.05ft) high, 7-segment, automatic lead zero blanking. |
| Display Range | Decimal: 0-99,999 |
| Resolution | 1/16 or 1/8 fractional inch |
| Backlight | White LED with 10-second auto shutoff (disabled below -4°F / -20°C) |
| Power Input | 9-30 VDC (max 2.2 W) |
| Update Rate | Above -4°F: Programmable (1-5 seconds) |
| Data Logging | Up to 512 records |
| Alarms | High/Low alarm indicators |
| Memory | Non-volatile memory (retains data for 10+ years) |
| Enclosure | EMA 4X / IP65 polycarbonate, UV stabilized |
| Brand | Tek-Trol |
| Manufacturer Part | Tek-LCD 7804A-AX0 |
| Country of Origin | Made in the United States |
Performance
| Operating Temperature | -40°F to 158°F (-40°C to 75°C) |
|---|
